All Weather System (AWS) Valve Kits

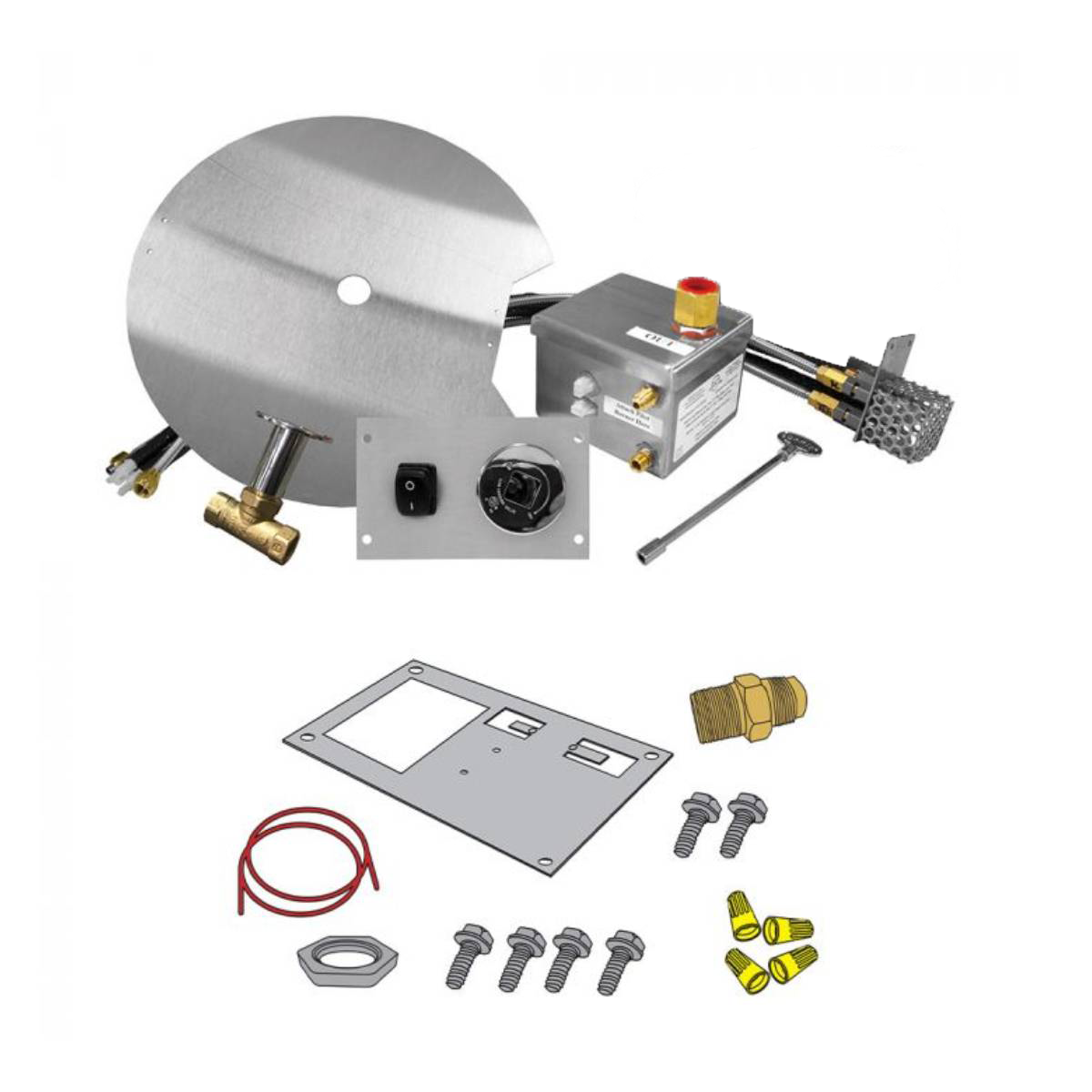

Standard AWS Ignition Kit (No Power Supply) Features

• 290K BTU Capacity
• 30V DC Valve System
• 1/2" FIP Inlet
• 1/2" FIP Outlet
• 30" Pilot Assembly
• Mounting Plate for Key Valve (1/2" IPS straight Valve with Key)
• On/Off Weatherproof Rocker Switch
• Heat Shield
• Mounting Hardware
• 10' AWS Power Wire to Valve
• 46" Non-Whistling Flex Line (1/2" OD, 3/8" ID)
• Tranquiline Gas Flex Connector
• Stainless Steel Coupler
• 1/2" Flare x 1/2" MIP Steel Adapter (Tapped 1/2" FIP)
• Power Supply and Orifice Not Included

Standard AWS Ignition Kit With Power Supply Features

• 290K BTU Capacity 30VDC Valve System
• 1/2" FIP Inlet
• 1/2" FIP Outlet
• 30" Pilot Assembly
• Mounting Plate for Key Valve (1/2" IPS straight Valve with Key)
• On/Off Weatherproof Rocker Switch
• Heat Shield
• Mounting Hardware
• 10' AWS Power Wire To Valve
• 46" Non-Whistling Flex Line (1/2" OD, 3/8" ID)
• Tranquiline Gas Flex Connector
• Stainless Steel Coupler
• 1/2" Flare x 1/2" MIP Steel Adapter (Tapped 1/2" FIP)
• 30V DC Power Supply
• Must be purchased as propane or natural gas
• Orifice Not Included

High Capacity AWS Ignition Kit (No Power Supply) Features

• 715K BTU
• 30V DC High Capacity Valve
• 3/4" FIP Inlet
• 3/4" FIP Outlet
• 30" Pilot Assembly
• Mounting Plate for High Capacity Key Valve (3/4" IPS straight Valve With Key)
• On/Off Weatherproof Rocker Switch
• Heat Shield
• Mounting Hardware
• 10' AWS Power Wire to Valve
• 34" Non-Whistling Flex Line (5/8" OD, 1/2" ID)
• Tranquiline Gas Flex Connector
• 3/4" Stainless Steel Close Nipple
• 5/8" Flare x 3/4" MIP Steel Adapter (Tapped 1/2" FIP)
• Power Supply and Orifice Not Included

Standard AWS Conversion Kit With Remote (No Power Supply)

• 290K BTU
• 30VDC valve system
• 1/2" FIP Inlet
• 1/2" FIP Outlet
• 30" Pilot assembly
• Heat Shield, Mounting hardware
• FG-1420-AOD On/Off remote kit with weatherproof enclosure
• GOE-30VDC power supply
• Natural Gas (NG) Only
• Power Supply and Orifice Not Included
